rate of accessing 10 BWCs≥8.0MB/S |
concurrent ≥900mAh |
|
|||
With single camera, device charge current≥2500mAh
With full Load, charge current≥1800mAh
With single camera, data collection rates ≥ 25MB/S
With full Load, data collection rate ≥ 8.0MB/S
| Data Security Efficient Management | ||||
|
|
|
||
|
|
|
|
||
|
Hardware
|
|
|

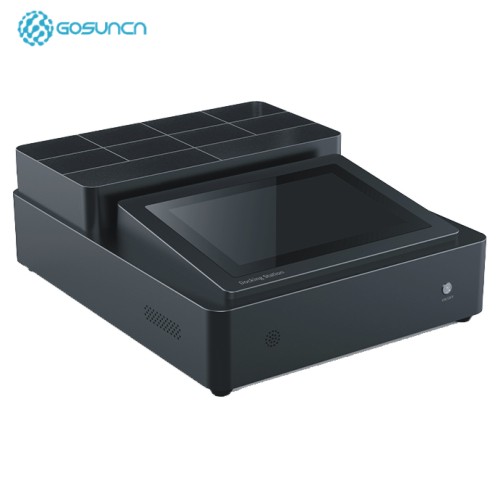

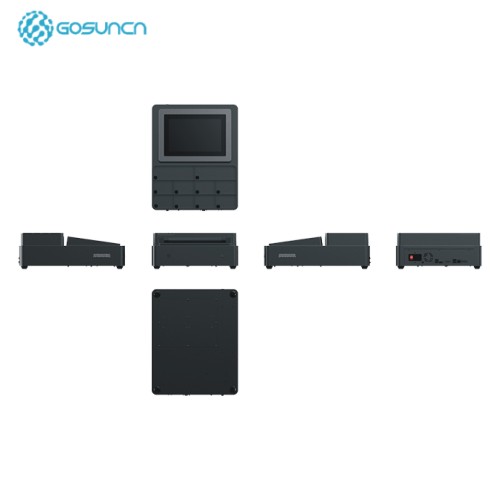

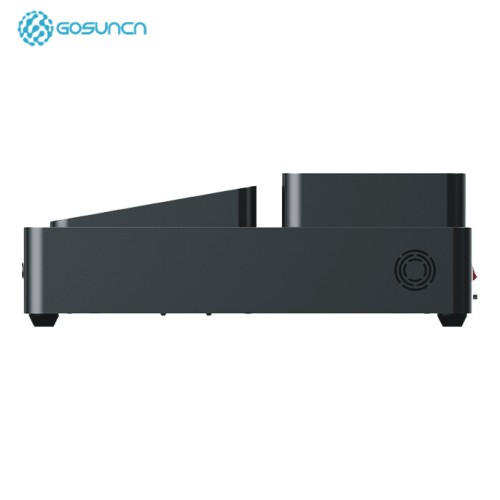

Appearance
|
|
|
Size
|
450mm*380mm*101mm
|
|
Weight
|
7.0kg
|
|
LCD Screen
|
10.0 inches 1280 * 800 LCD Touch Screen
|
|
Alarm sound
|
≥5min
|
|
Working noise
|
≤50dB
|
|
Performance
|
|
|
CPU
|
Intel 4C/4T
|
|
RAM
|
4GB
|
|
Hard disk
|
|
|
High-speed Solid-state Disk
|
64G SSD
|
|
Storage
|
4 TB (4T/6T/8T/12T/16T/20T for optional)
|
|
Disk slots
|
2
|
|
Power
|
|
|
Voltage
|
110V-240V
|
|
Power input
|
Supports normal operation within the range of 85% ~ 110% of the device's power supply voltage rating.
|
|
Ports
|
|
|
Collection port
|
10 ports Mini-USB2.0, ensure data transmission stability and speed ability. (Type-c for optional)
|
|
The max data acquisition rate of accessing 10 BWCs
|
≥8.0MB/S
|
|
Full load charging current
|
≥2000mAh
|
|
Network port
|
*1
|
|
Working environment
|
|
|
Working temperature
|
-10°C-55°C Working humidity≤93%
|
|
Storage temperature
|
-25°C-60°C Working humidity≤93%
|
|
Software
|
|
|
Device management
|
|
|
Device registration authorization
|
The docking station needs to be registered and authorized before it can be used normally.
|
|
Device binding
|
The body worn camera needs to be registered after it is connected to the docking station, and the registered device can be bound to the specified user.
|
|
Automatic recharging function
|
Support to recharge the body worn camera automatically.
|
|
Multi-device recharging simultaneously
|
Support 10 body worn cameras recharging simultaneously.
|
|
Time synchronization
|
Support automatic time correction of the accessed body worn camera, and the time could be accurate to "year, month, day, hour, minute and second".
|
|
Status display
|
It will display body worn camera's ID, device storage space, loading status etc. while data uploading.
|
|
Working status
|
Support to display network status, storage capacity status, workstation mode status, etc.
|
|
Data acquisition
|
|
|
Data acquisition
|
Support to auto-collect the registered body worn camera’s video, audio, image and log etc.
|
|
Multi-device data uploading simultaneously
|
Support 10 body worn cameras data uploading simultaneously.
|
|
Auto clear
|
It can automatically clear the internal data of the body worn camera that has completed the data upload
|
|
Data integrity
|
* In the process of data collection, if one body worn cameras be cancel imported by manual, the data stored in the body camera and docking station will not be lost. * In case of power failure, restart, crash and the body camera disconnection of the docking station, the data stored in the body camera and the docking station will not be lost. It will continue to collect automatically after the next connection.
|
|
Automatic classified storage
|
It can classify and save the data according to the product serial number, user name and time of the body worn camera.
|
|
Import status query
|
Support query the status of data import, including file name, file size, file duration, required duration and other information.
|
|
Data operation function
|
Support for data viewing, deleting, key annotation and other operations.
|
|
Data query
|
The collected data of video, audio, photo and log can be queried according to one or more conditions such as user name, date & time and file type.
|
|
Storage space management
|
Support the management of storage space, including the setting of early warning value.
|
|
Security management
|
|
|
User permissions management
|
Support users with permissions to manage, including view, export, delete and other permissions.
|
|
Data security protection
|
* Support the data protection of the docking station to prevent unauthorized processes from viewing, modifying or deleting the data. * Support the data protection of the docking station, prevent unauthorized personnel from entering the OS to directly view, modify or delete the data.
|
|
Log record
|
It can automatically log the operation status and all operations of the device, including on / off, user login and operation, access / removal of body worn camera, data acquisition of body worn camera, fault occurrence / recovery time, etc.
|
|
Status monitoring
|
Support to monitor the network link status of the docking station.
|
